Specification :
Working voltage: DC 12-24V
Rated voltage: 12V 20A / 24V 10A
Switch operation: On-Off
Operating at 12 Volts: max power rating of 600W
Operating at 24 Volts: max power rating of 1200W
Max current: 60A
Operating temperature: -40°C ~ +105°C
Waterproof rating: IP65
Features :

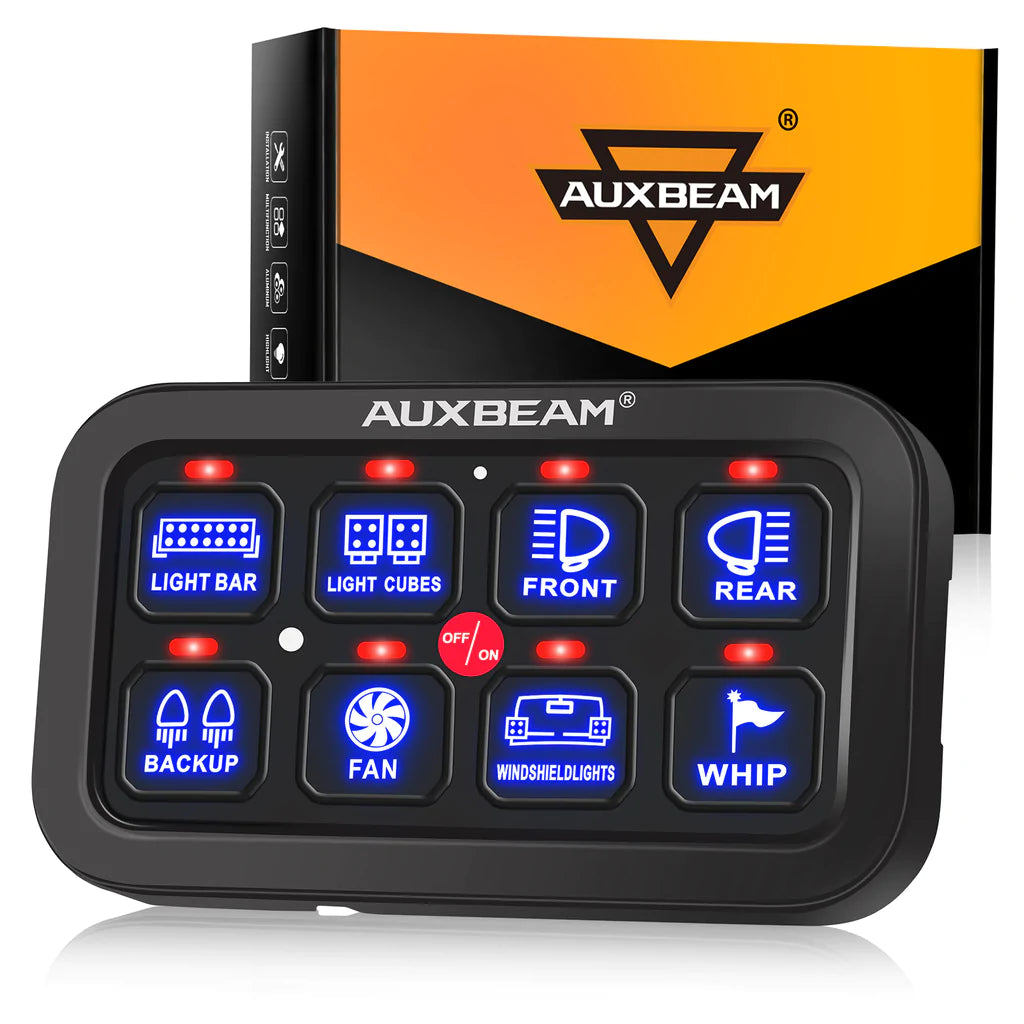

▶8 Gang Switch Panel
- 8 Gang on-off Control Flat Panel Switch: Adpot Capacitive sensing technology with blue indicator light display, waterproof IP65, with high sensitivity, stability and strong anti-interference ability.
- Safety protection: Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection.
- Label Stickers: Rocker Switch Panel with replacement label stickers by your favor and needs.
- Wide application: 8 In 1 touch screen panel with 12-24VDC input voltage, fit for most cars, trucks, boats, yachts and Caravans.
▶47 Inch Extension Cable
- There is a 4-pin aviation video cable, a cable for transmitting video and power.
- It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
- Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
- Power input DC 12V - DC 24V.
- Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.

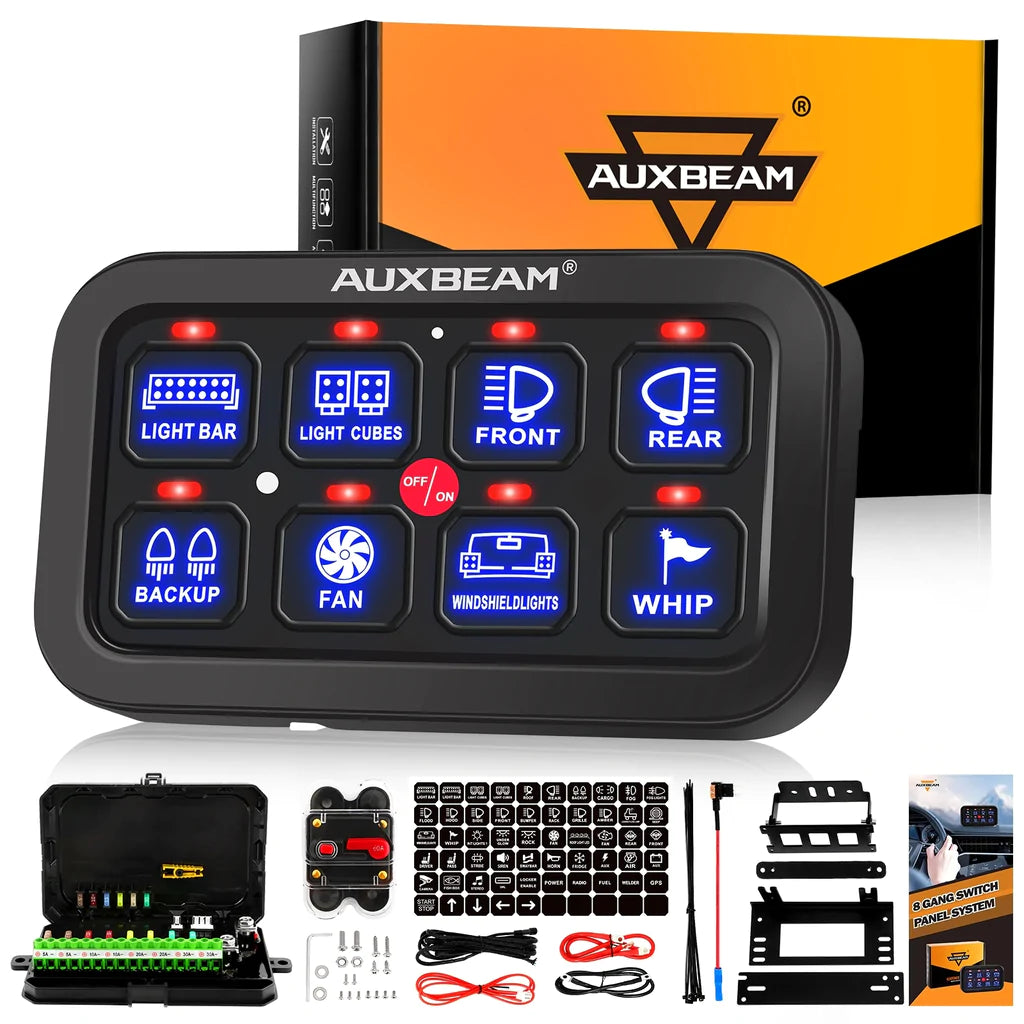

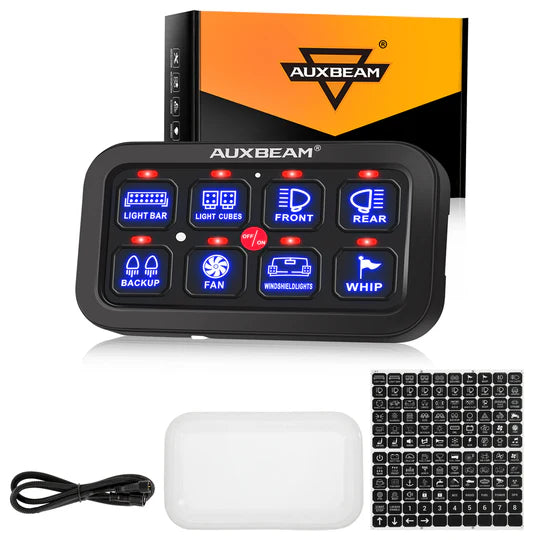

Package Included :
1 Set of 8 Gang on-off Control Switch Panel
1*Extension Cable (OPTIONAL)
