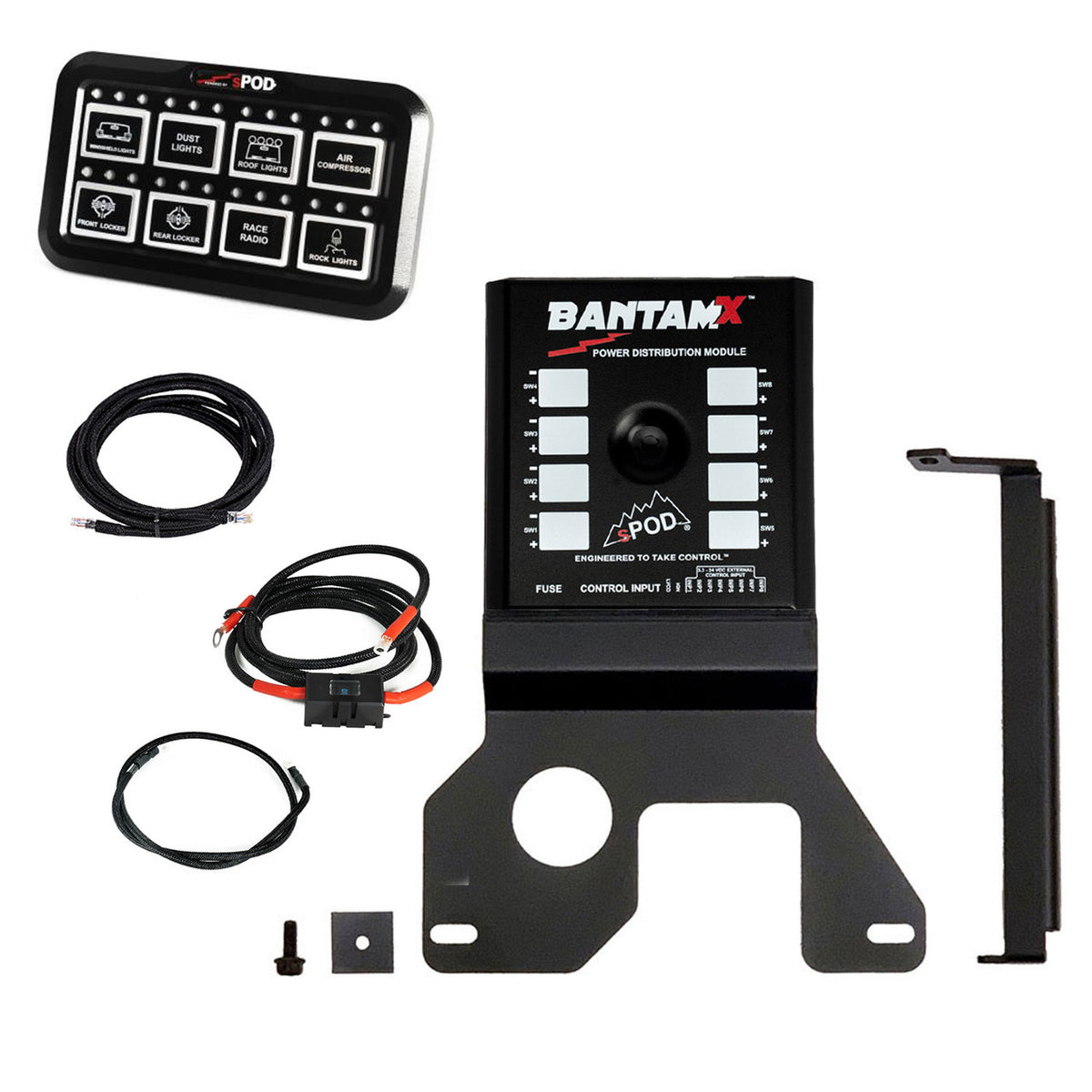

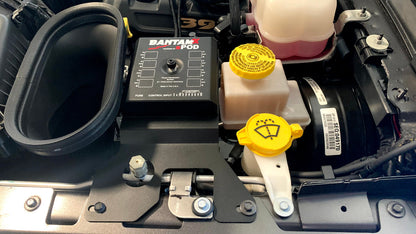

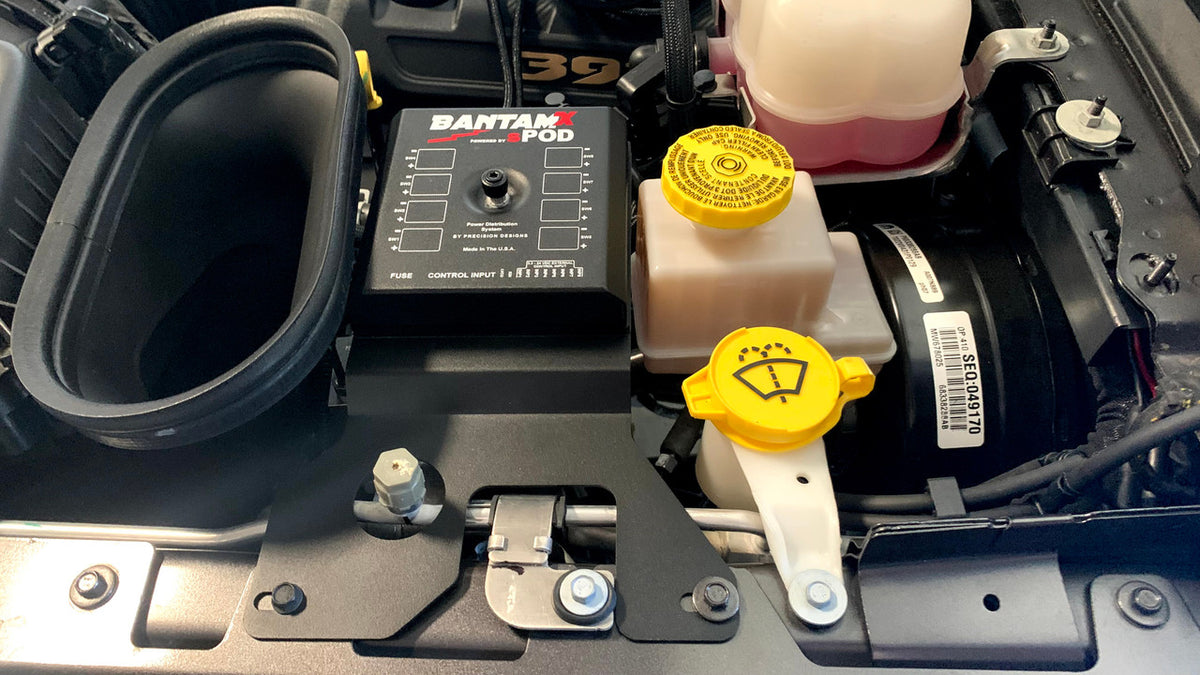

The BantamX HD system for the Jeep JL V8 models is a compact, 8-circuit (expandable) control system that simplifies wiring and installation for 12/24VDC accessories. With the Jeep JL V8-specific mounting bracket and small footprint, installing the BantamX under the hood is hassle-free, without the need for cutting, fishing wires, or tapping into your vehicle's electrical system.

Key Features:

• Digital Control: 8 circuits, 30 amps each at 12.5 VDC
• Accessory Attachment: 16-position terminal block, 2 RJ45 ports for Ethernet
• Battery Protection: Integrated low voltage cutoff (LVCO) with override
• Self-Healing Fault Protection: MOSFETs controlled by a microprocessor
• Bluetooth-Enabled: Remote control and wireless updates
• Safety: Overheating, over-current, short circuit, and reverse polarity protection

Hardware:

• Durable Build: Powder-coated steel base, weatherproof silicone gasket
• Mounting: Jeep JL V8 Specific Mounting Plate

sPOD Mobile App: program each switch for dimming, strobe, flash, momentary, and switch linking; choose between On-Road and Off-Road modes.

HD Control Panel

• Rugged, compact unit designed to withstand harsh environments
• Black powder-coated billet aluminum housing with silicone-encapsulated tactile switches
• Backlit, programmable switches for dimming, strobe, flash, and linking
