NOTE: This system will not fit the Jeep Wrangler 392 V8.

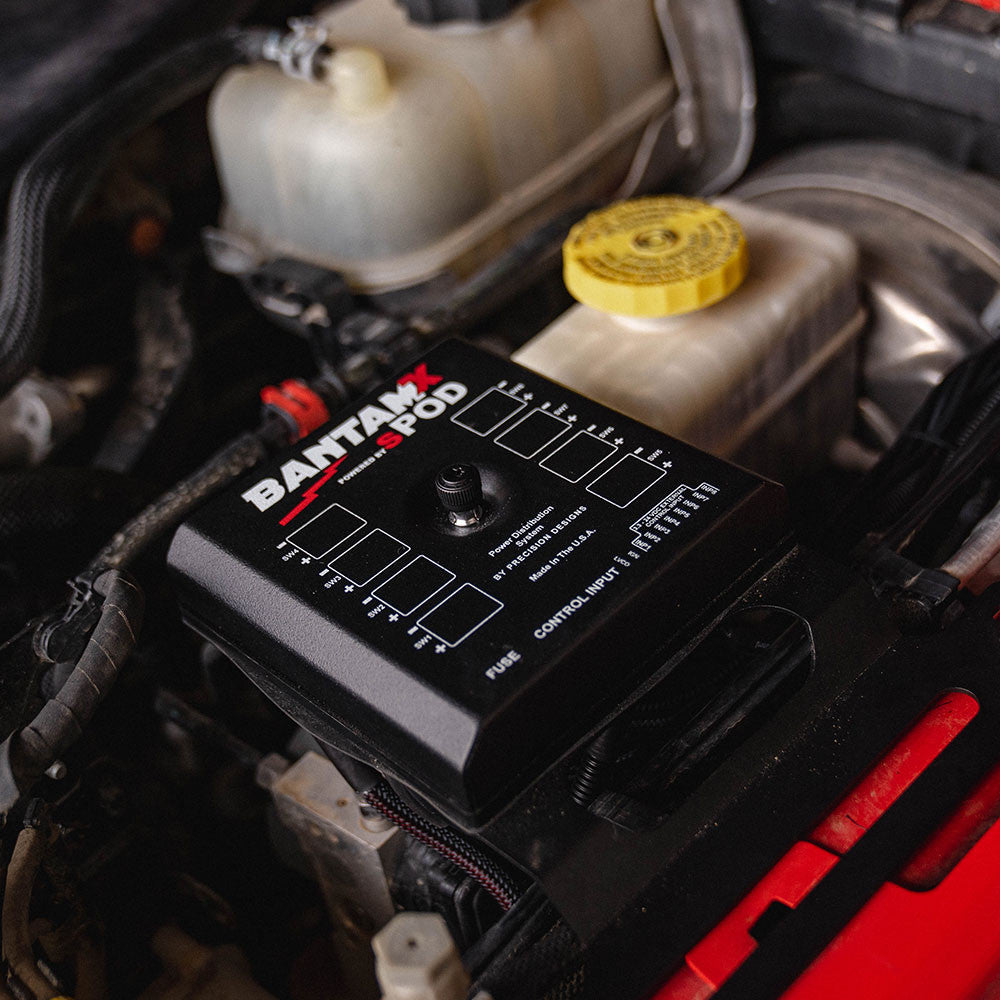

The BantamX HD system for the Jeep JL/JT is your go-to solution for simplifying wiring and installation. This compact, 8-circuit (expandable) control system powers and manages 12/24VDC accessories with just a single Ethernet cable into the cab. With the Jeep-specific mounting bracket and small footprint, installing the BantamX under the hood is hassle-free, without cutting, fishing wires, or tapping into your vehicle's electrical system.

Backed by sPOD's 5-year manufacturer warranty. Download the sPOD app from the Apple App Store or Google Play and take command of your Jeep’s electrical accessories with ease.

Key Features:

• Programmable System: 8 circuits, each rated at 30 amps at 12.5 VDC

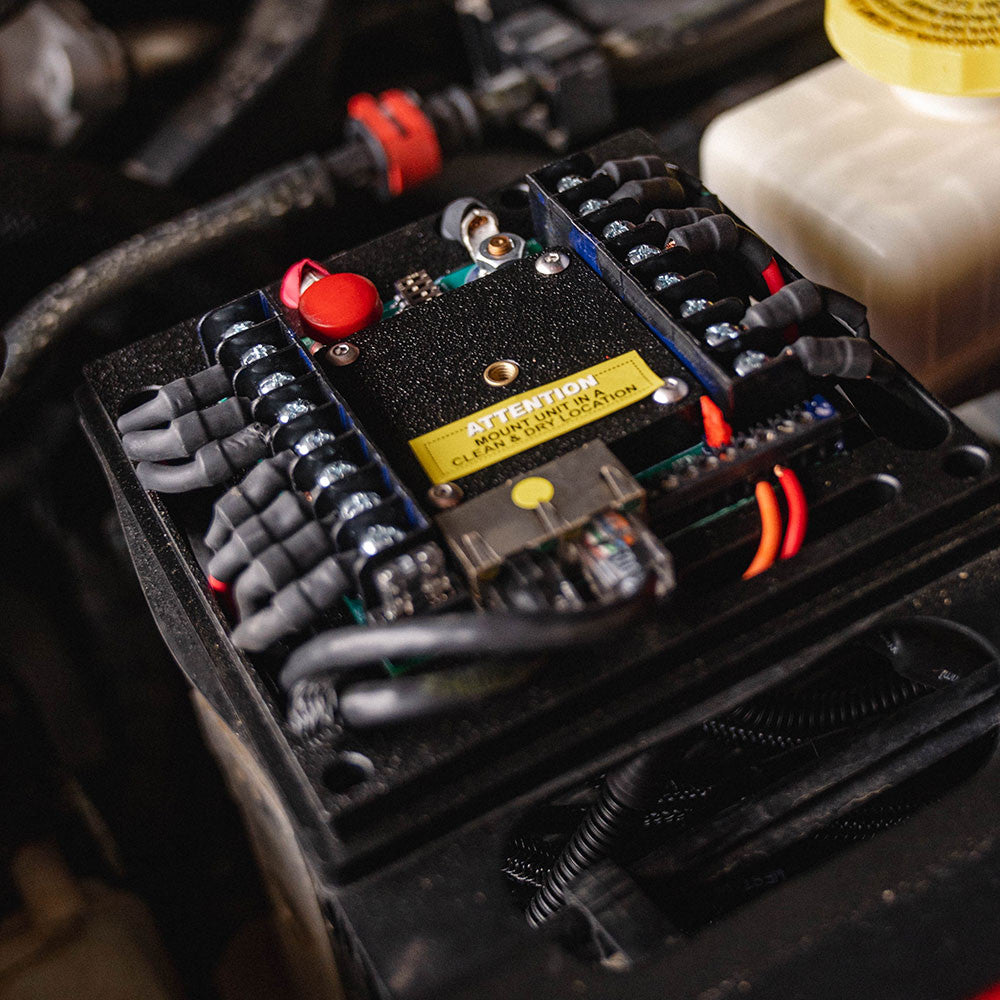

• Easy Accessory Attachment: 16-position terminal block and 2 RJ45 controller ports for Ethernet cables
• Battery Protection: Integrated low voltage cutoff with optional override, and a 100-amp inline fuse
• Advanced Technology: Microprocessor-controlled MOSFETs (no fuses/relays) with built-in Bluetooth for remote control
• Safety Features: Protection against overheating, over-current, shorts, reverse polarity, and field collapse
• Optional Ignition Control: Safety lock-out for switches 1 and 2

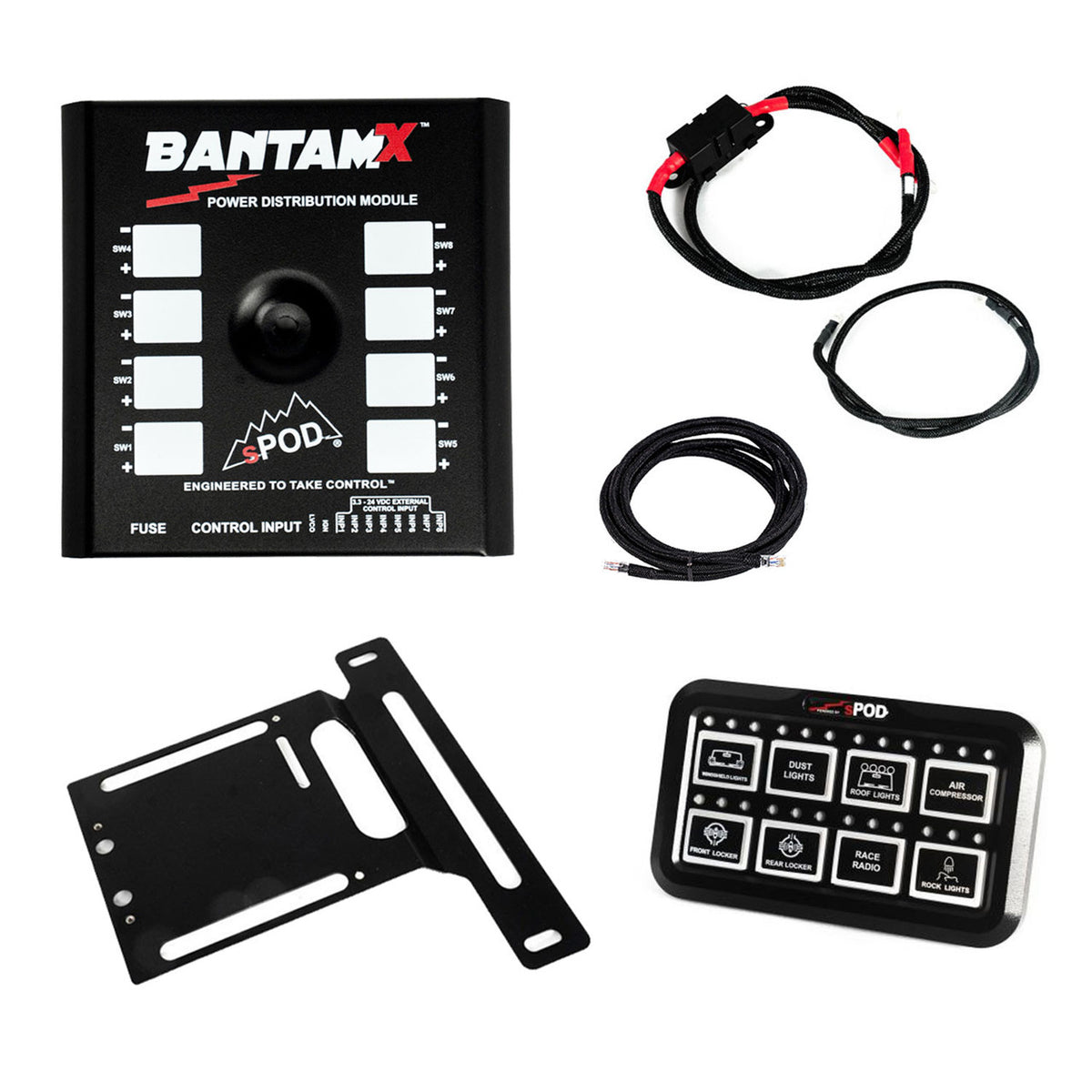

Hardware:

• Powder-coated steel base, weatherproof silicone gasket, and aluminum lid with thumb screw fastening

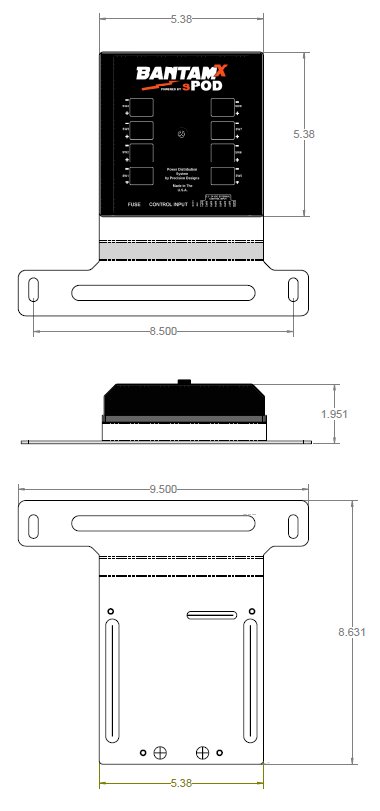

• Jeep-specific mounting bracket
• Insulated base and cover for added protection

sPOD Mobile App (Free): program each switch for dimming, strobe, flash, momentary, and switch linking; choose between On-Road and Off-Road modes. Pro-Series app (sold separately) adds circuit timers, switch lockout, programmable current limiting, ignition control for all 8 circuits and custom strobe patterns.

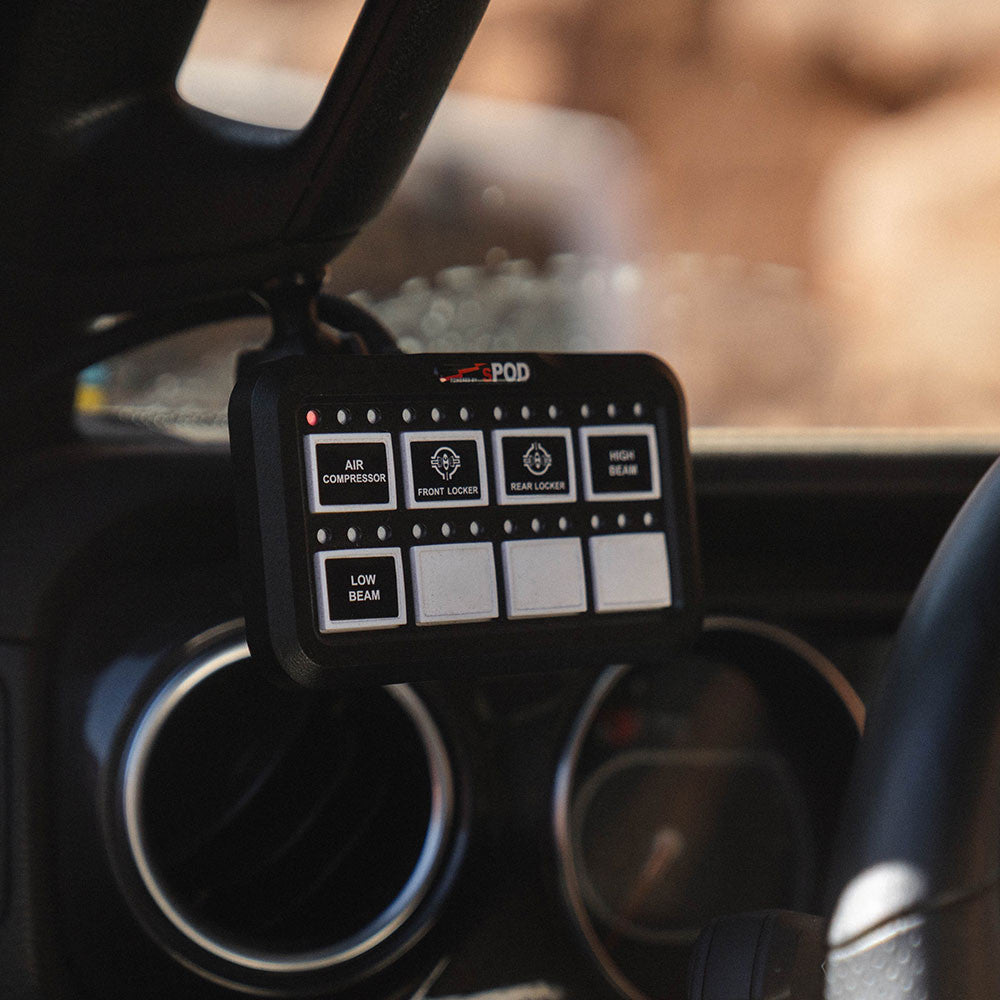

HD Control Panel

• Black powder-coated billet aluminum housing with silicone-encapsulated tactile switches
• Compact size: smaller than an iPhone, with multiple mounting options
• Built-in Bluetooth LE: program and control the system via the sPOD app on iOS and Android
• RGB backlighting with customizable colors, brightness, and status indicators
• Panel lock-out feature for safety and security
• RJ45 jack; panel can be located up to 25 feet from the source using standard CAT-6 Ethernet cable
