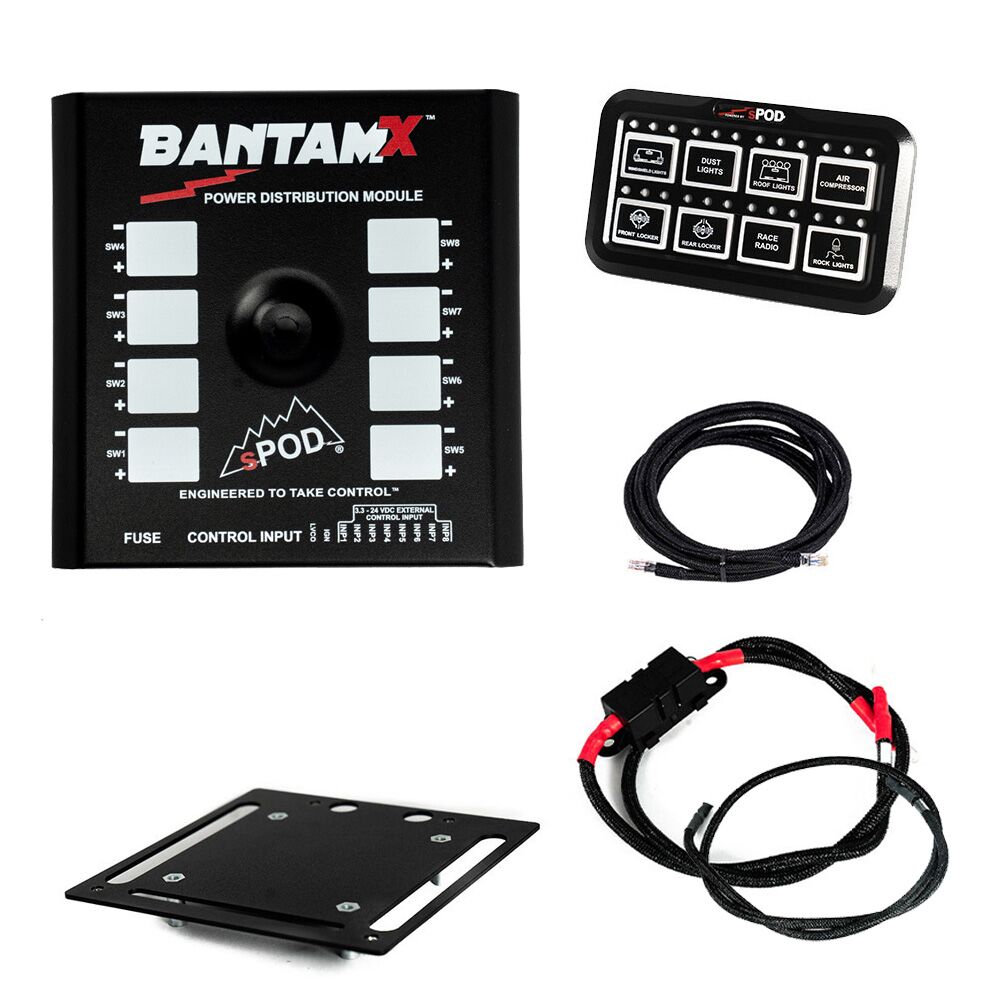

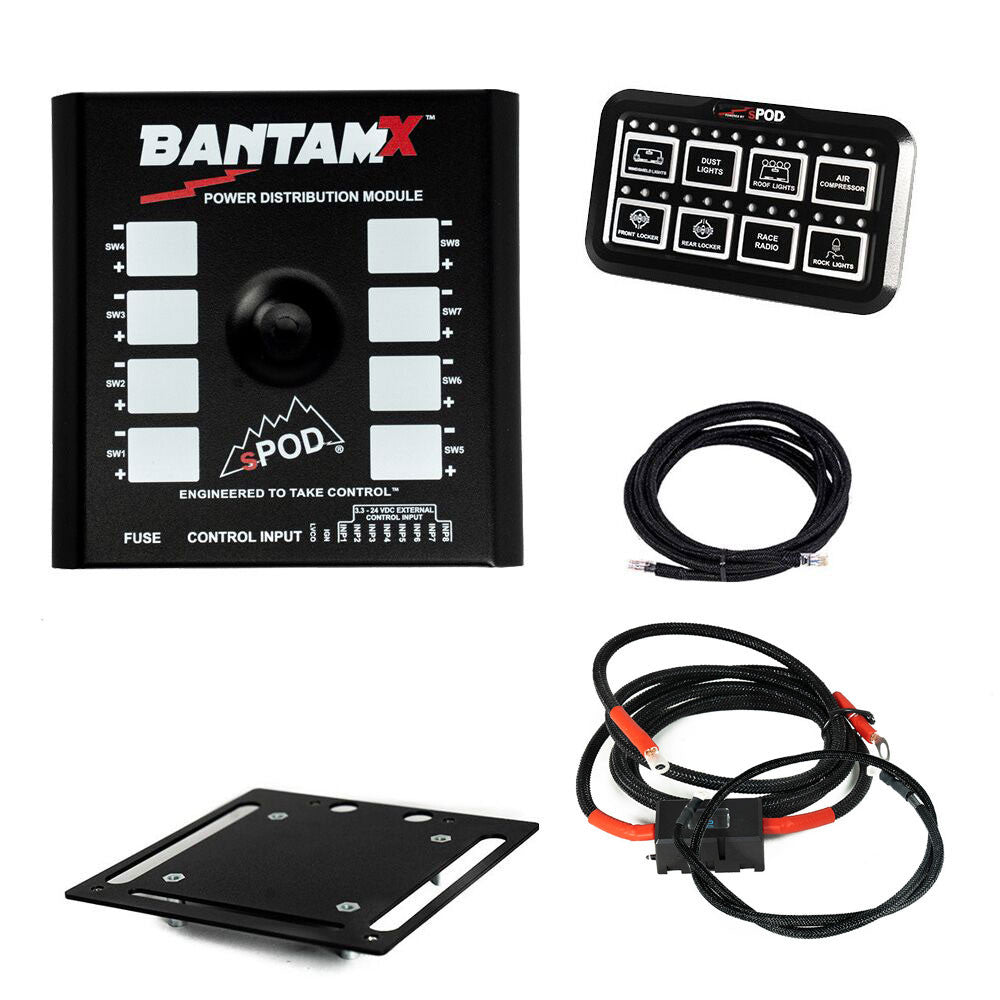

The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system.

• Fully programmable, digital controlled system
• 8 circuits rated at 30 amps at 12.5 VDC per circuit
• 16-position terminal block (easily attach accessories)
• 2 controller ports (RJ45) for Ethernet cables
• Integrated low voltage cutoff (LVCO) battery protection w/ optional override
• Failsafe self-healing fault protection system (from 1.5 to 30amps)
• Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)
• 100amp in-line fuse
• Operates on 12VDC or 24VDC
• 8-position input terminal block for controlling outputs
• Built-in Bluetooth capabilities for remote control
• Protection against: overheating, over-current, shorts, reverse polarity & field collapse
• Ignition control and safety lock-out for switches 1 and 2 (optional)
• On-demand wireless software updates/upgrades

HARDWARE:

• Powder coated steel base w/ built in hardware
• Silicone gasket for weatherproofing
• Thumb screw fastening aluminum lid with silkscreened outlines for supplied legend placement
• Universal & vehicle specific mounting options

FEATURES AVAILABLE THROUGH sPOD MOBILE APP (free): dimming, strobe, flash, momentary, switch linking, and On Road / Off Road modes. A Pro-Series mobile app upgrade (sold separately) adds circuit timers, switch lockout, programmable current limiting and more.

HD CONTROL PANEL

• Encased in a black powder coated billet aluminum housing with tactile switches encapsulated in silicone
• Designed to withstand the harshest environments
• Compact size: 2-7/8" W x 4-7/8" L x 1/2" thick (smaller than an iPhone)
• Universal back with two pressed-in 1/4-20 studs, plus standard universal articulating mount
• Comes with a 10 foot CAT-6 Ethernet cable; can be located up to 25 feet from the BantamX
• Built-in Bluetooth LE to program and control the system with the free sPOD app
• All 8 switches are backlit; RGB backlight color and intensity adjustable to match dash lighting
• Panel lock-out feature for safety and security
• Comes standard with one sheet of 72 legends
• HD can run in conjunction with the Touchscreen, Bluetooth and 8 Switch panel
