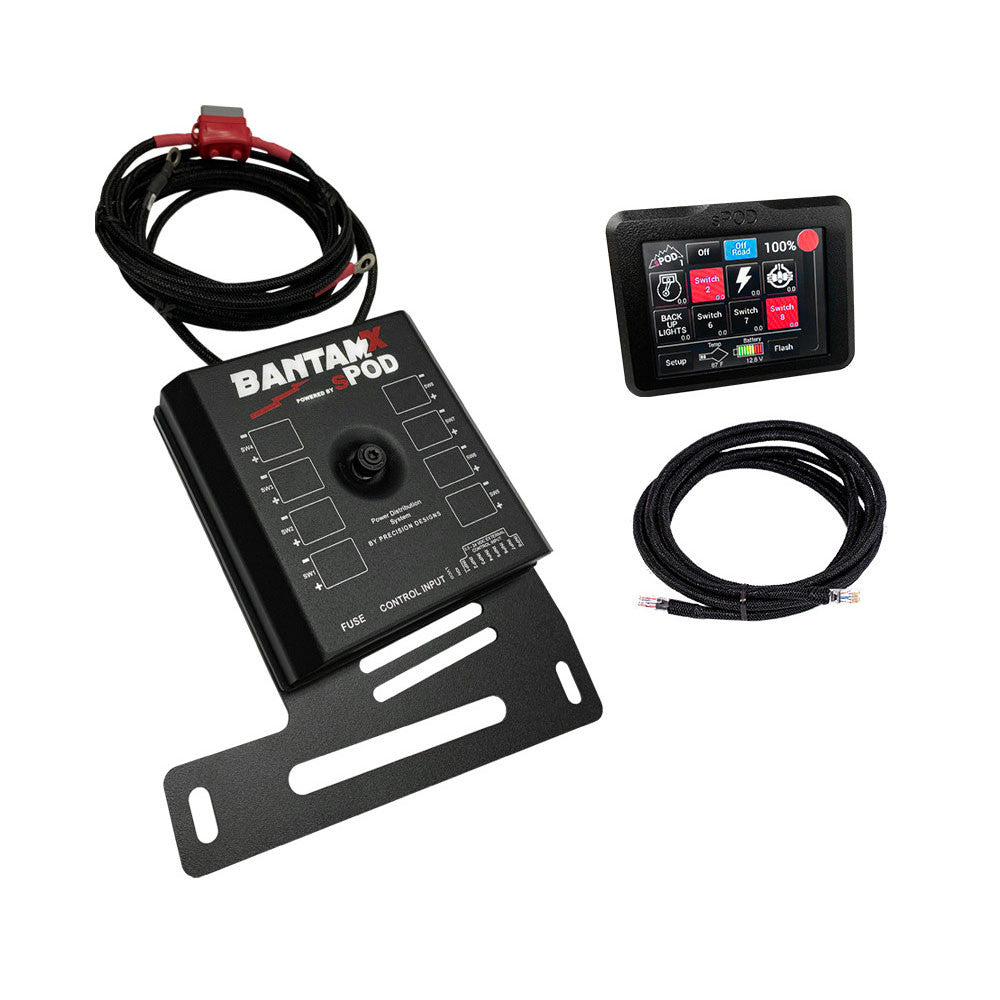

The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system.

• Fully programmable, digital controlled system
• 8 circuits rated at 30 amps at 12.5 VDC per circuit

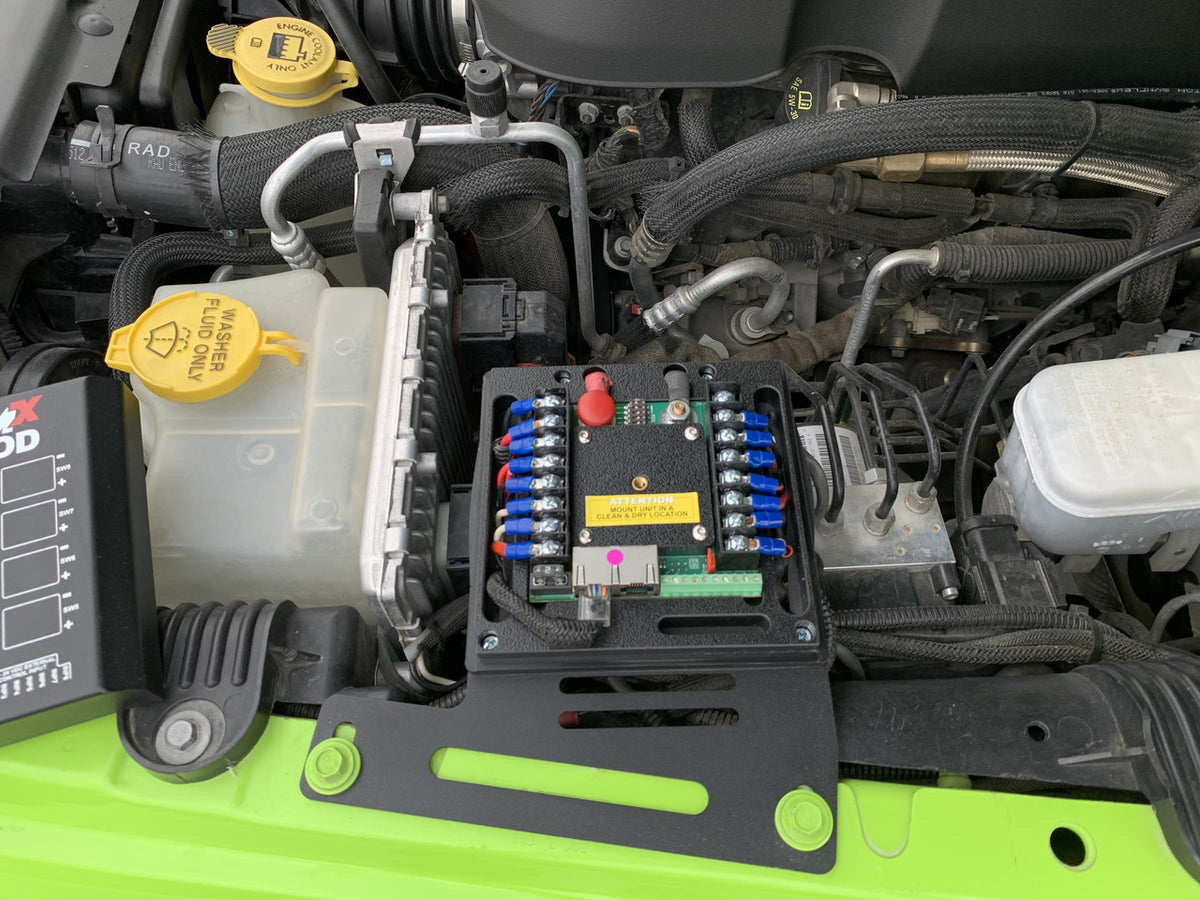

• 16-position terminal block (easily attach accessories)
• 2 controller ports (RJ45) for Ethernet cables
• Integrated low voltage cutoff (LVCO) battery protection w/ optional override
• Failsafe self-healing fault protection system (from 1.5 to 30amps)
• Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)
• 100amp in-line fuse
• Operates on 12VDC or 24VDC
• 8-position input terminal block for controlling outputs
• Built-in Bluetooth capabilities for remote control
• Protection against: overheating, over-current, shorts, reverse polarity & field collapse
• Ignition control and safety lock-out for switches 1 and 2 (optional)
• Up to 4 BantamX units can be daisy chained & controlled by one Touchscreen
• On-demand wireless software updates/upgrades

HARDWARE:

• Powder coated steel base w/ built in hardware
• Silicone gasket for weatherproofing
• Thumb screw fastening aluminum lid with silkscreened outlines for supplied legend placement

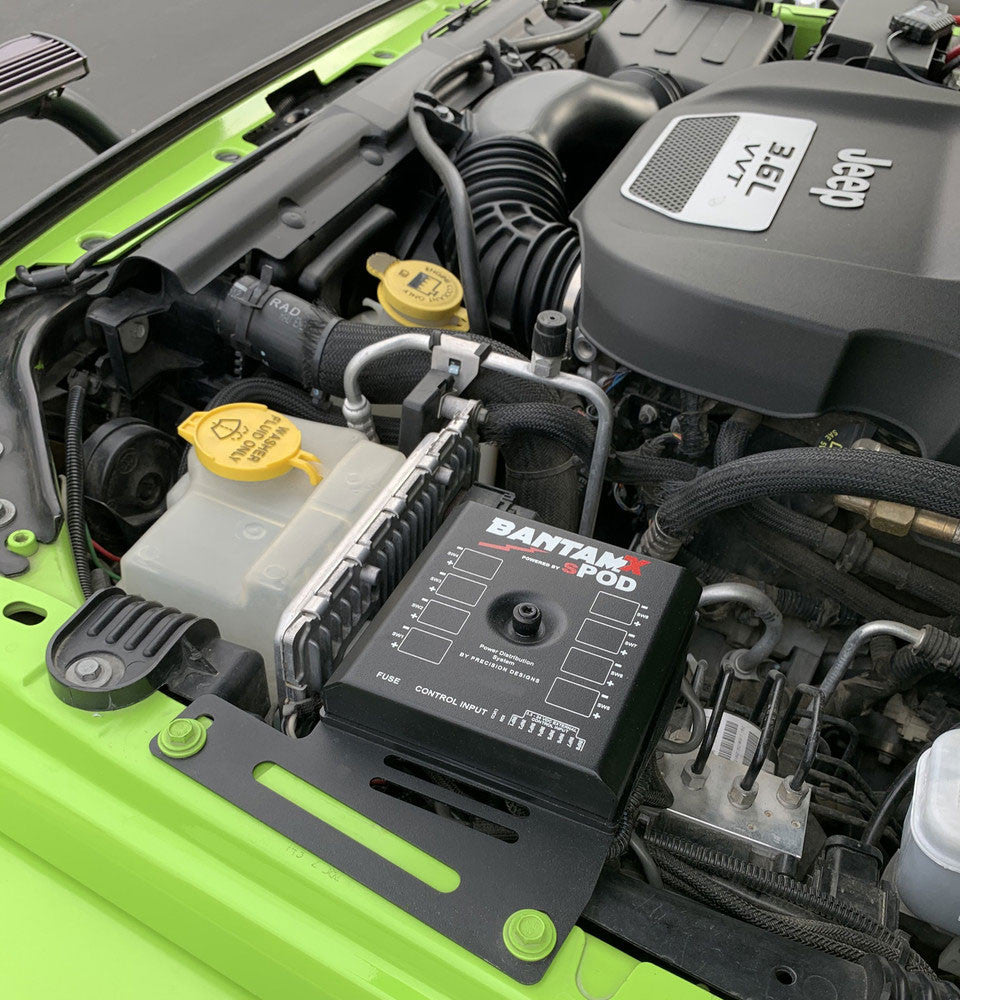

• Vehicle specific mount included

FEATURES AVAILABLE THROUGH sPOD MOBILE APP (free): dimming, strobe, flash, momentary, switch linking, and On Road / Off Road modes. A Pro-Series mobile app upgrade (sold separately) adds circuit timers, switch lockout, programmable current limiting and more.

TOUCHSCREEN CONTROL PANEL

Note: the touchscreen display will become inoperable below 20°F. Let the cab warm up before operation.

• Mount and connect eight switches at one time; one harness to the controller handles up to 32 circuits
• Voltage feedback (vehicle battery/alternator voltage)
• Amperage meter for each switch shows how much current each accessory is drawing
• Board temperature feedback (shown on screen)
• Customizable legends (3 lines of text)
• Automatic backlight off after 30 minutes of inactivity; deep sleep after 6 hours
• One touch-off function; one second hold on off button shuts all circuits down
• Automatic system shut down when the touchscreen is unplugged
• Bluetooth for programming the touchscreen (range 5-15 ft)

Additional Touchscreen Mounting Options (sold separately):

• RAM-201U Double Socket Arm for 1-inch RAM Ball (required to mount touchscreen)
• RAM-238U Base with 1-inch RAM Ball (fixed surface mounting)
• RAM-224-1U Suction Cup Base with 1-inch RAM Ball
