NOTE: This system will not fit the Jeep Wrangler 392 V8.

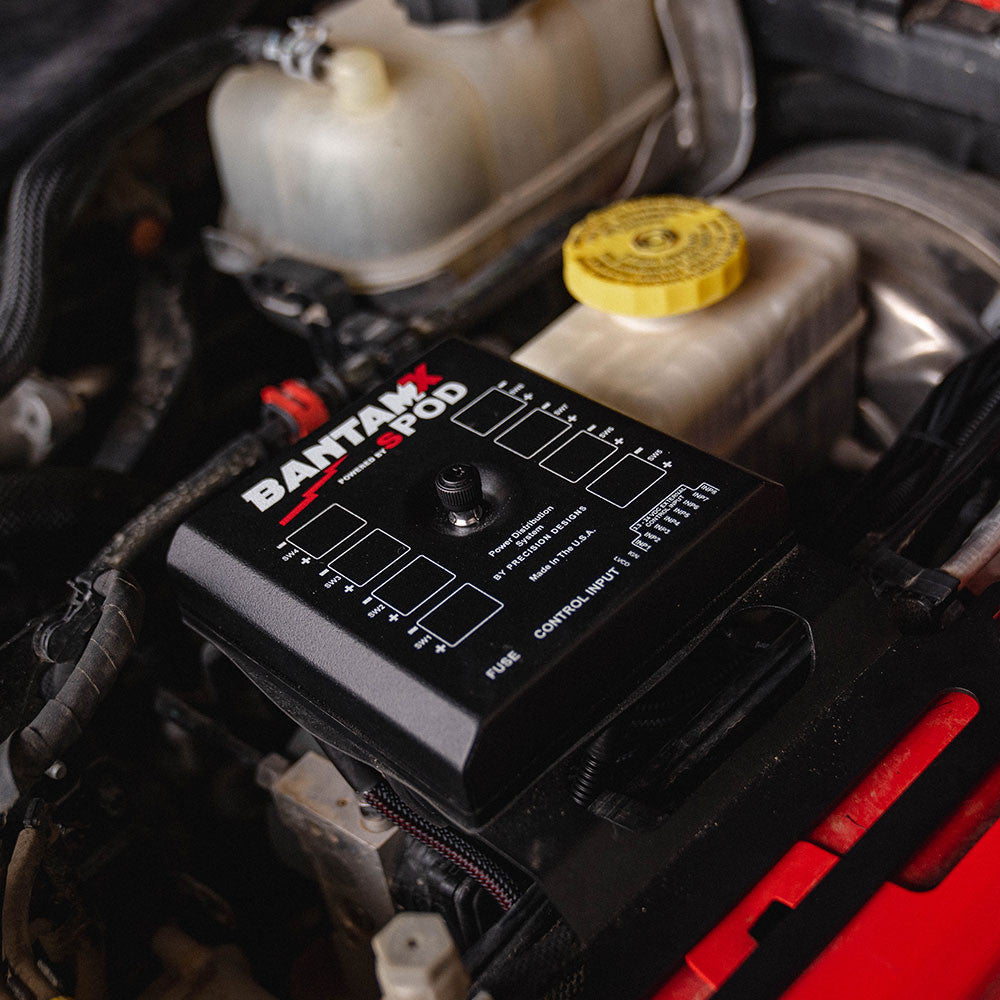

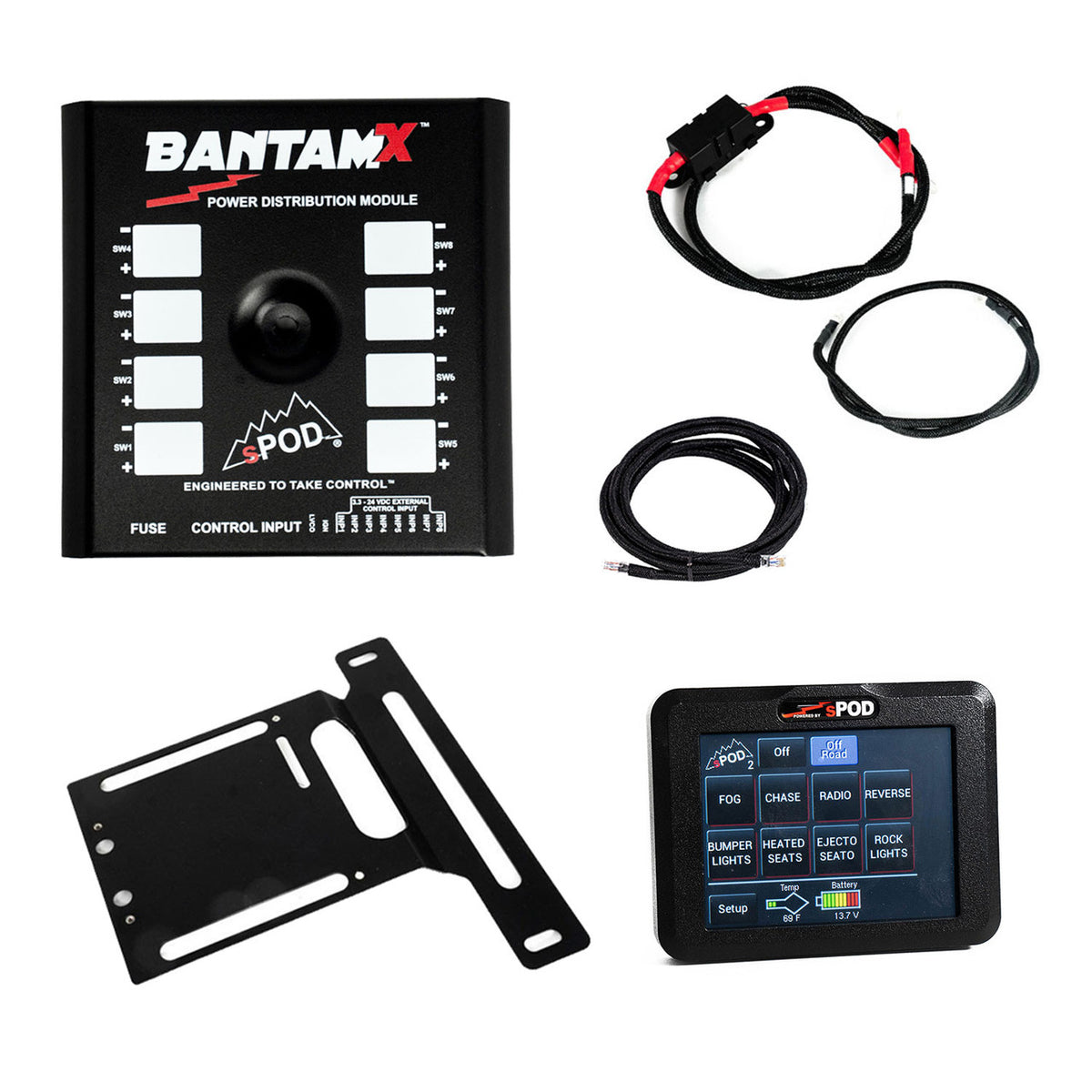

The BantamX simplifies your wiring and installation process, saving you hours of work. This compact, expandable 8-circuit control system allows you to power and manage 12/24VDC accessories with just one Ethernet cable into the cab. Its small footprint offers endless placement options, with no cutting, fishing wires, or tapping into the vehicle’s electrical system required.

Key Features:

• Fully Programmable System: Control up to 8 circuits, each rated at 30 amps (12.5 VDC)
• Expandable & Easy to Install: 16-position terminal block for accessories, 2 RJ45 controller ports, and a 100-amp inline fuse
• Battery Protection: Integrated low voltage cutoff (LVCO) with optional override and self-healing fault protection
• Advanced Tech: Microprocessor-controlled MOSFETs (no fuses/relays), built-in Bluetooth for remote control, and current-sensing capabilities
• Safety Features: Protection against overheating, over-current, shorts, reverse polarity, and field collapse. Optional ignition control and safety lockout for switches 1 and 2

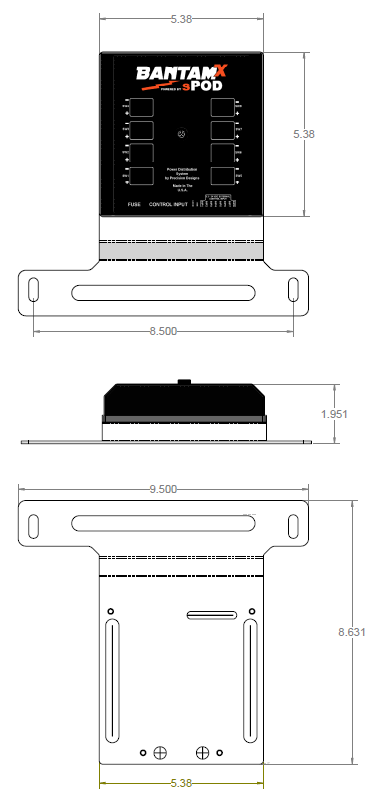

Hardware: Powder-coated steel base, weatherproof silicone gasket, and aluminum lid with easy-to-use thumb screws. Vehicle-specific mount included.

sPOD Mobile App Control (Free): Customize switches with dimming, strobe, flash, momentary, and switch linking options, and choose between On-Road and Off-Road modes. Pro-Series app upgrade adds circuit timers, switch lockout, programmable current limiting and ignition control for all 8 circuits.

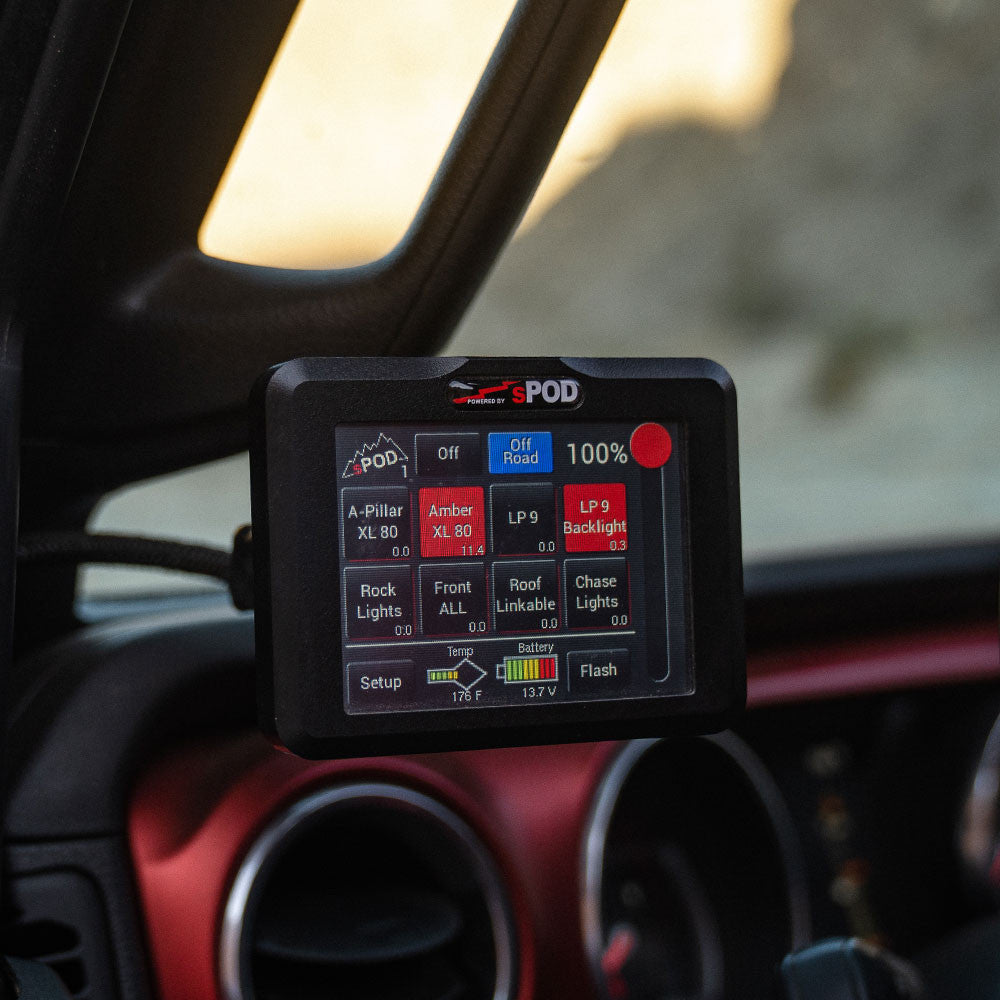

Touchscreen Control Panel:

• Streamlined Installation: Control 8 switches simultaneously, reducing complexity and weight
• Real-Time Monitoring: Voltage feedback, amperage meter, and board temperature feedback on screen
• Customizable Display: Automatic backlighting, power-off features, and personalized legends
• Multiple Source Control: One touchscreen can manage up to 32 circuits
• Bluetooth Programming: For easy touchscreen setup (range may vary)

Note: The touchscreen may become inoperable below 20°F. Allow the cab to warm up before use.

Additional Touchscreen Mounting Options (sold separately):

• RAM-201U Double Socket Arm for 1-inch RAM Ball (required to mount touchscreen)
• RAM-238U Base with 1-inch RAM Ball (fixed surface mounting)
• RAM-224-1U Suction Cup Base with 1-inch RAM Ball
