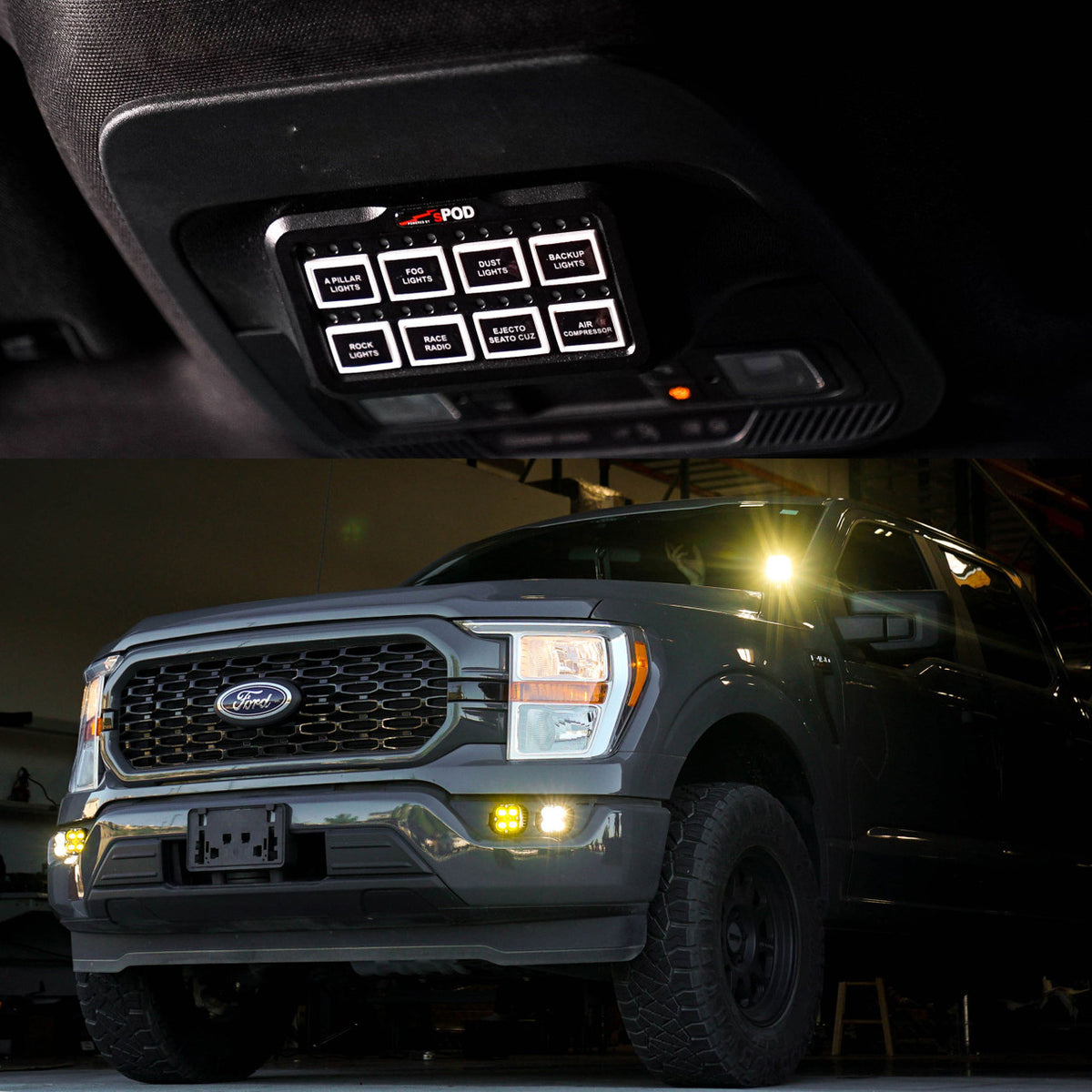

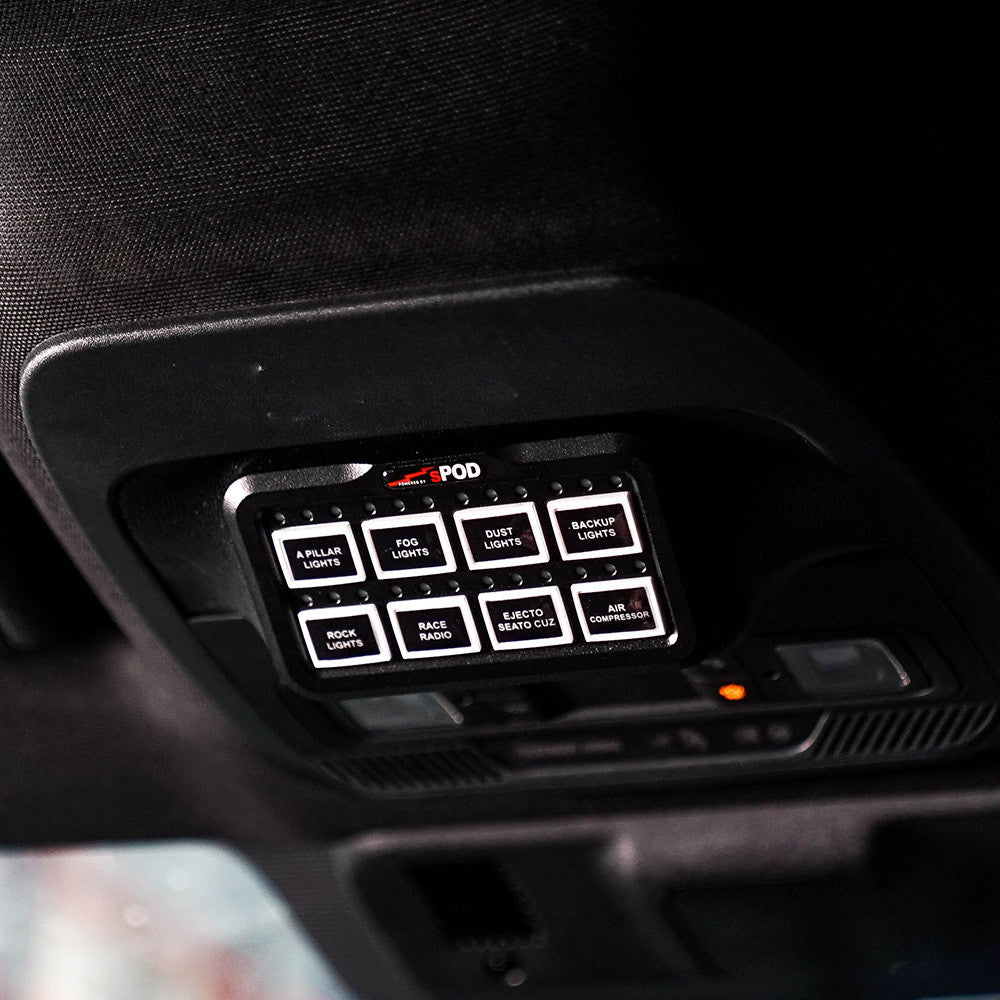

sPOD BantamX HD vehicle-specific kit for Ford F-150 (’21-on) and Ford F-150 Raptor (’21-on) has been designed specifically to integrate the sPOD HD panel into your cabin seamlessly while providing a safe place to access all your controls. Designed to replace the in-cab sunglass holder, our plate has been specifically designed at the perfect angle to access switches easily.

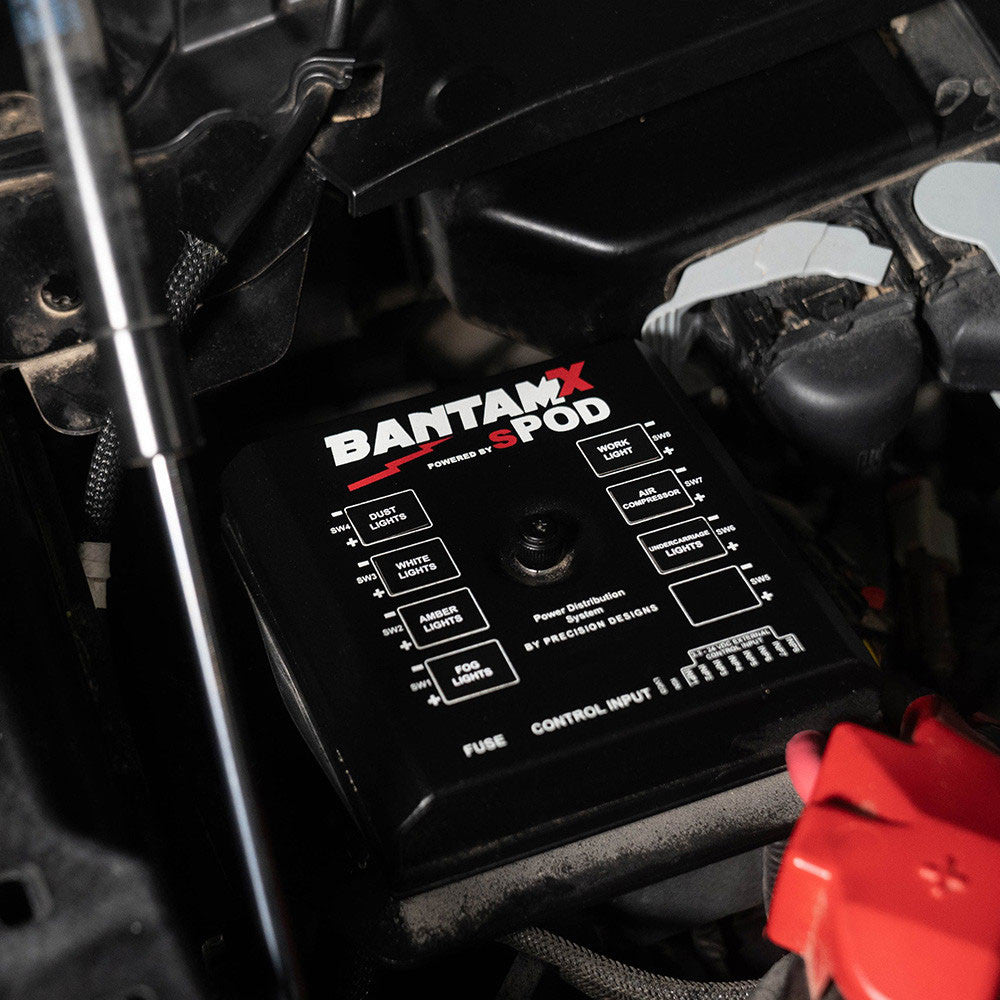

The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system.

• Fully programmable, digital controlled system
• 8 circuits rated at 30 amps at 12.5 VDC per circuit
• 16-position terminal block (easily attach accessories)
• 2 controller ports (RJ45) for Ethernet cables
• Integrated low voltage cutoff (LVCO) battery protection w/ optional override
• Failsafe self-healing fault protection system (from 1.5 to 30amps)
• Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)
• 100amp fuse
• Operates on 12VDC or 24VDC
• 8-position input terminal block for controlling outputs
• Built-in Bluetooth capabilities for remote control
• Protection against: overheating, over-current, shorts, reverse polarity & field collapse
• Ignition control and safety lock-out for switches 1 and 2 (optional)
• On-demand wireless software updates/upgrades

HARDWARE:

• Powder coated steel base w/ built in hardware
• Silicone gasket for weatherproofing
• Thumb screw fastening aluminum lid with silkscreened outlines for supplied legend placement
• Robust insulated base and cover

FEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):

• Dimming, Strobe, Flash, Momentary
• Switch Linking
• On Road and Off Road modes of operation

Pro-Series mobile App (purchase) adds circuit timers, switch lockout, 65amp startup current for 5 seconds, always-on circuits with fault protection, programmable current limiting, programmable ignition control for all 8 circuits and custom strobe patterns.

HD CONTROL PANEL

• Encased in an aluminum billet machined housing, powder coated black, utilizing tactile switches encapsulated in silicone.
• Silicone Buttons with positive touch feedback.
• Designed to withstand the harshest environments with all weather conditions considered.
• Compact in size: 2-7/8W x 4-7/8L x 1/2 Thick (smaller than an iPhone).
• Universal back with two pressed-in 1/4-20 studs for flat mounting, plus standard universal articulating mount.
• Comes with a 10 foot CAT-6 Ethernet cable; can be located up to 25 feet from the BantamX.
• Built-in Bluetooth LE* to program and control the system with the free sPOD app.
• All 8 switches are backlit; RGB backlight color and intensity adjustable to match dash lighting.
• Panel lock-out feature for safety and security.
• Comes standard with one sheet of 72 legends.
• Each switch has 3 status lights: Red = On, White = Flash/Strobe active, Blue = button pushed.
• HD can run in conjunction with our Touchscreen, Bluetooth and 8 Switch panel.

Bluetooth Requirements:

• Access to iTunes or Google Play Store to download the sPOD app
• Bluetooth 4.0 compatible
• Compatible with Android devices running 8.0 Oreo (API 26) or later
• Compatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini
• Must have existing sPOD system

*Bluetooth in the HD panel is primarily for programming; range may vary from 5 to 15 feet.
