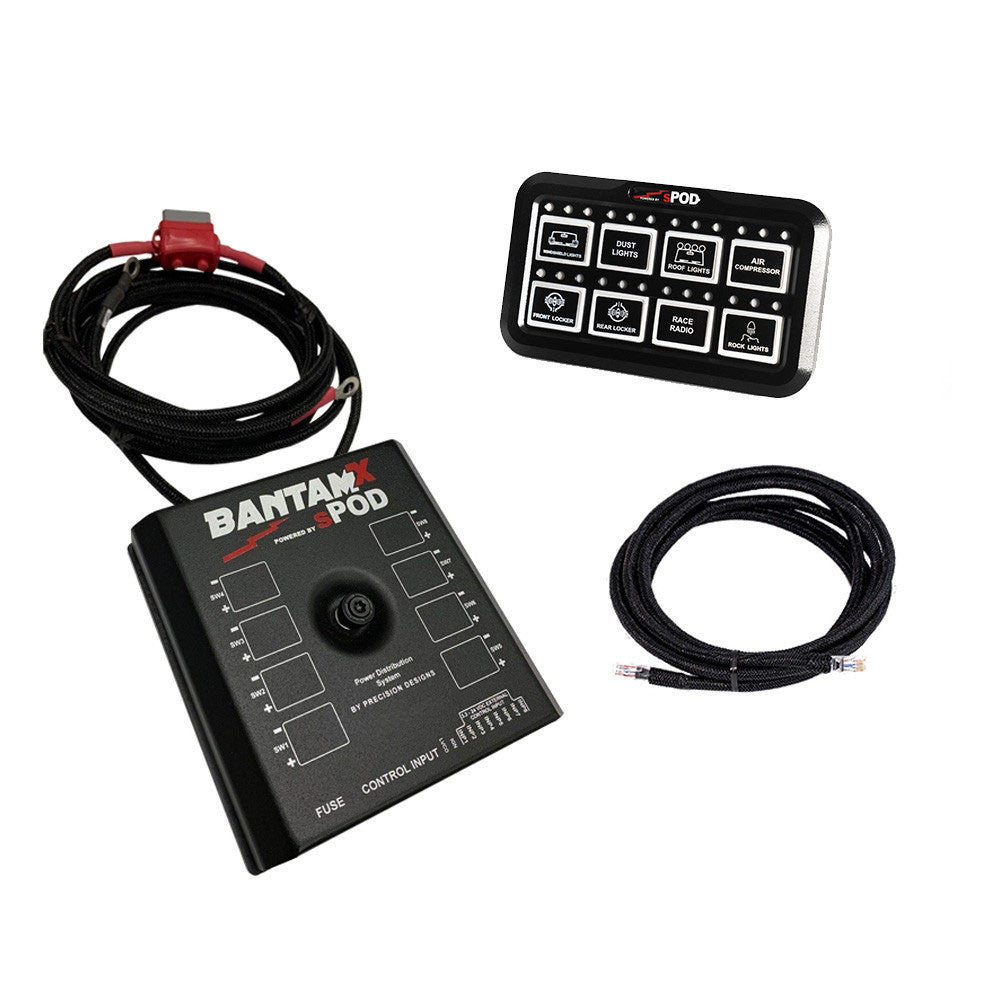

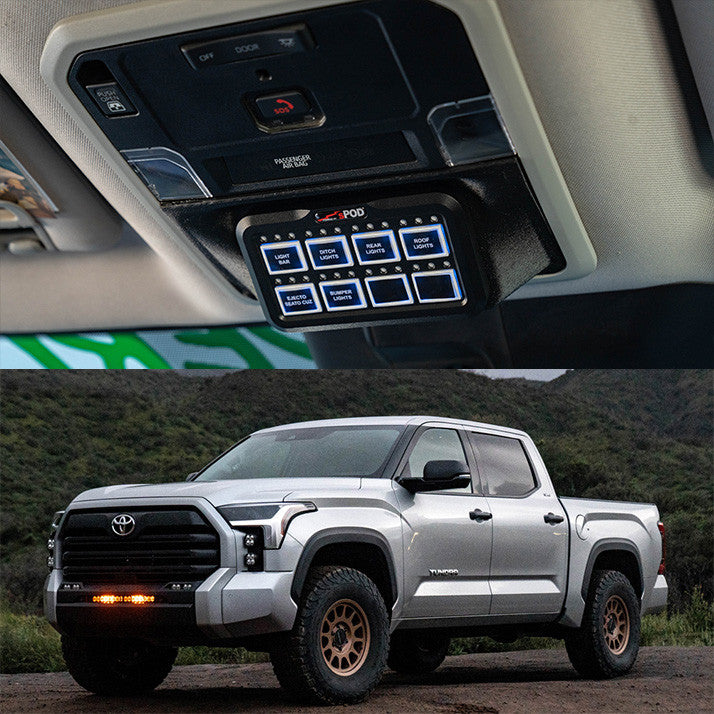

sPOD BantamX HD vehicle-specific kit for Toyota Tundra (’22-on) has been designed specifically to integrate the sPOD HD panel into your cabin seamlessly while providing a safe place to access all your controls. Designed to replace the in-cab sunglass holder, our plate has been specifically designed at the perfect angle to access switches easily.

The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.

• Fully programmable, digital controlled system
• 8 circuits rated at 30 amps at 12.5 VDC per circuit
• 16-position terminal block (easily attach accessories)
• 2 controller ports (RJ45) for Ethernet cables
• Integrated low voltage cutoff (LVCO) battery protection w/ optional override
• One ATM mini-style fuse for LVCO protection & reset
• Failsafe self-healing fault protection system (from 1.5 to 30amps)
• Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)
• 100amp fuse
• Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
• Operates on 12VDC or 24VDC
• 8-position input terminal block for controlling outputs
• Built-in Bluetooth capabilities for remote control
• Protection against: overheating, over-current, shorts, reverse polarity & field collapse
• Ignition control and safety lock-out for switches 1 and 2 (optional)
• On-demand wireless software updates/upgrades

HARDWARE:

• Powder coated steel base w/ built in hardware
• Silicone gasket for weatherproofing
• Simple, thumb screw fastening aluminum lid with convenient silkscreened outlines for supplied legend placement
• Universal & vehicle specific mounting options
• Robust insulated base and cover

FEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):

Each switch can be programmed for:
• Dimming
• Strobe
• Flash
• Momentary
• Switch Linking
• On Road and Off Road mode of operation

HD CONTROL PANEL

• Encased in an aluminum billet machined housing, powder coated black, utilizing tactile switches encapsulated in silicone.
• Silicone Buttons with positive touch feedback.
• Panel is designed to withstand the harshest environments with all weather conditions considered.
• Compact in size: 2-7/8W x 4-7/8L x 1/2 Thick (smaller than an iPhone).
• One standard RJ45 jack on the back for communication cable between HD panel and the BantamX. (HD comes with a 10 foot CAT-6 Ethernet cable)
• Built-in Bluetooth LE allows you to program and control the system using the free sPOD app.
• Each switch is programmable for dimming, flash, momentary, strobe, and switch linking.
• All 8 switches are backlit; RGB backlight color and intensity can be changed to match vehicle interior dash lighting.
• Panel lock-out feature for safety and security.
• Legends can be applied (comes standard with one sheet of 72 legends).
• HD can run in conjunction with our Touchscreen, Bluetooth and 8 Switch panel.

Bluetooth Requirements:

• Access to iTunes or Google Play Store to download the sPOD app
• Bluetooth 4.0 compatible
• Compatible with Android devices running 8.0 Oreo (API 26) or later
• Compatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini
• Must have existing sPOD system
