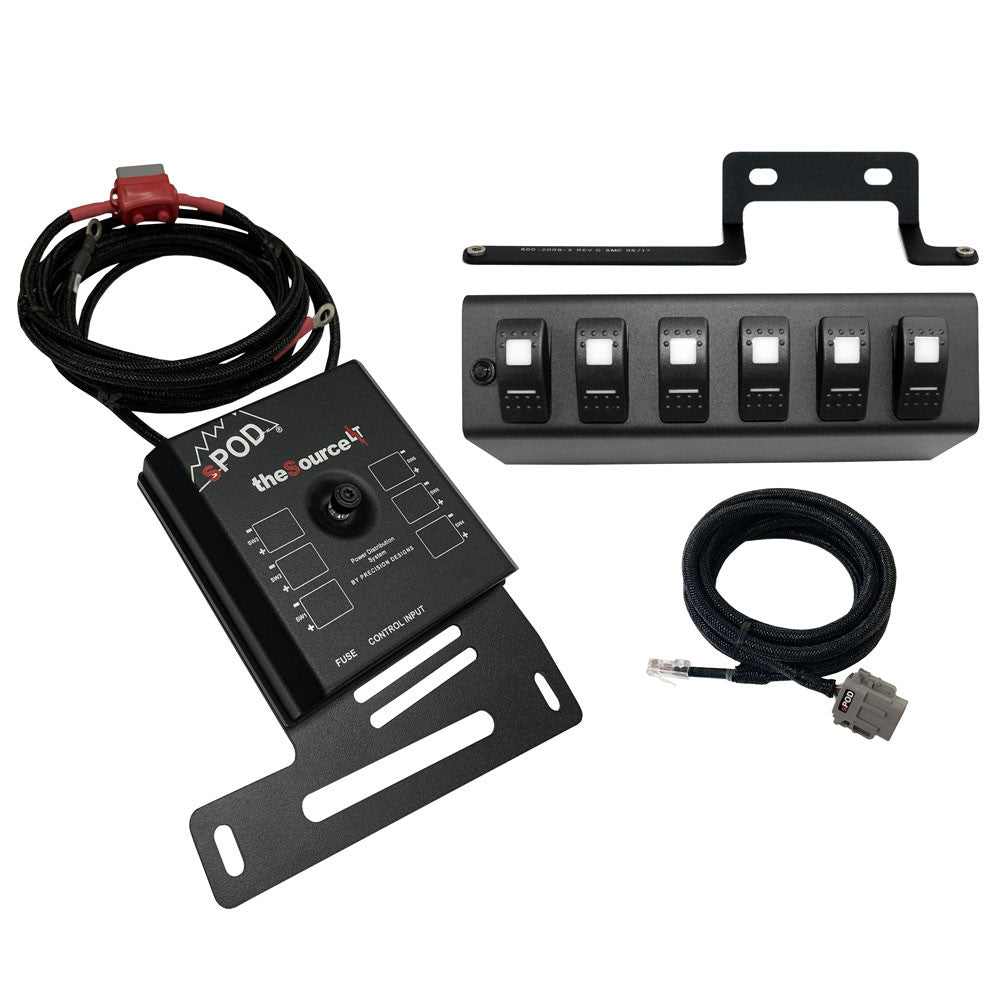

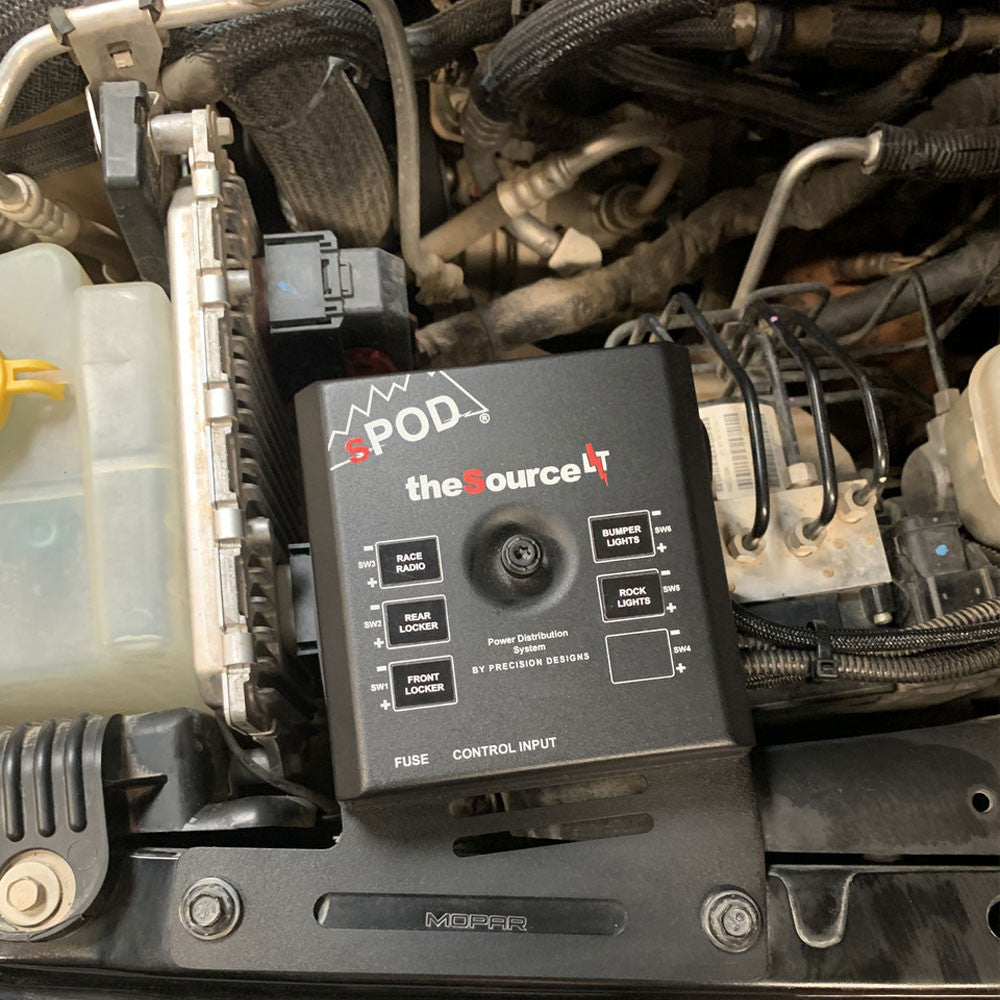

The SourceLT will save hours of wiring & installation time! It is a small, solid-state 6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories. Due to the small footprint of the SourceLT, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system.
- 6 circuits rated at 30 amps at 12.5 VDC per circuit
- 12-position terminal block (easily attach accessories)
- Controller cable (10 foot) for simple plug-n-play connectivity to the switch controller
- Integrated low voltage cutoff (LVCO) battery protection w/ optional override
- Self-healing fault protection circuits (from 1.5 to 30amps)
- Current-sensing MOSFETs controlled by a microprocessor (no fuses & no relays)
- 100amp in-line fuse
- Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
- Operates on 12VDC
- Built-in Bluetooth capabilities for remote control
- Protection against: overheating, over-current, shorts, reverse polarity and field collapse
- On-demand wireless software updates/upgrades
HARDWARE:
- Powder coated steel base w/ built in hardware
- Silicone gasket for weatherproofing
- Thumb screw fastening aluminum lid with silkscreened outlines for placement of supplied legends
- Vehicle specific mounting
FEATURES AVAILABLE THROUGH sPOD MOBILE APP (free): dimming, strobe, flash, momentary, switch linking, and On-Road / Off-Road modes.

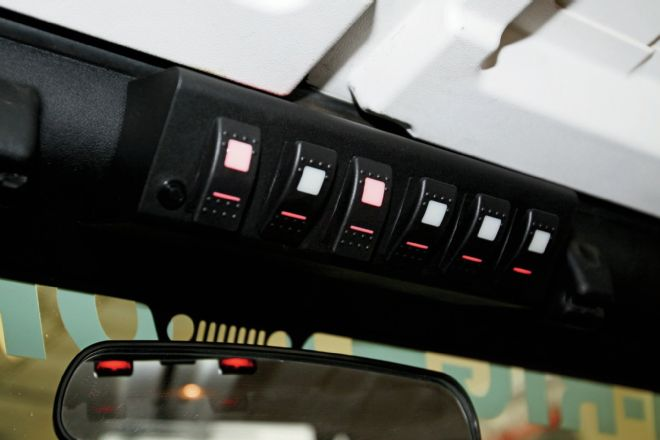

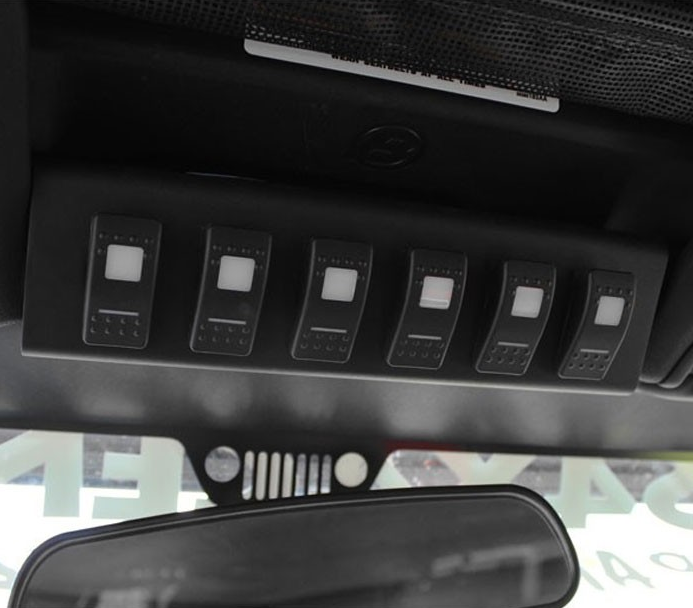

SWITCH PANEL

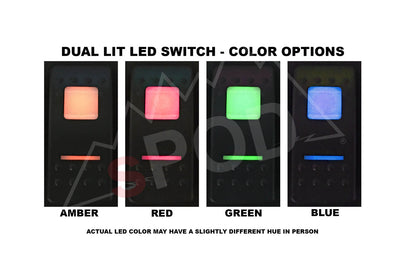

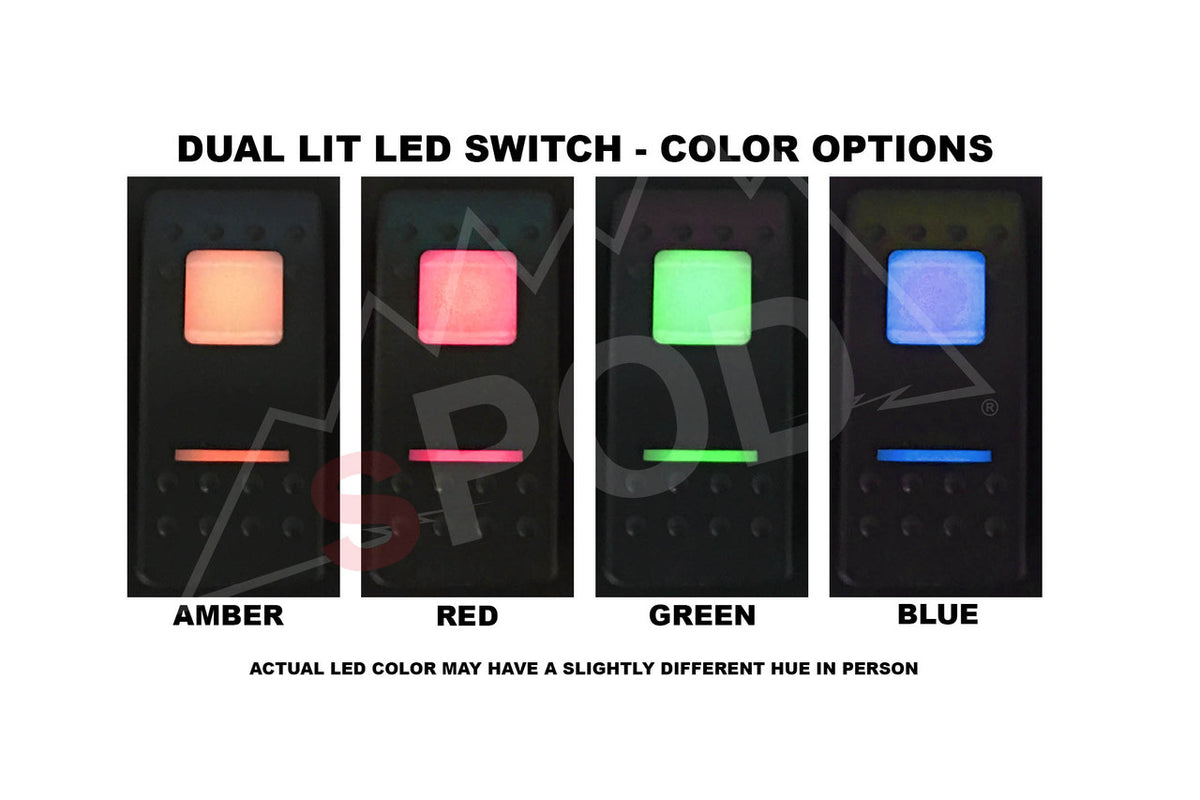

- Switch panel with six dual lit LED switches (installed and pre-wired)
- All wires are wrapped in high-temp abrasion resistant nylon braided sleeving
- Comes with a 10 foot control cable
- Aluminum panels are formed, welded and powder coated
- Carling Technologies Contura switches (certified to IP66/68 - marine/harsh environment)
- Custom laser-etched rockers are available (sold separately)
- Auto safe system shutdown when panel is unplugged
Bluetooth Requirements: sPOD app (iOS 11+ / Android 8.0+), Bluetooth 4.0, existing sPOD system.
